Specifications
| Max system voltage | 1500V |
| Rated current | 5A-35A |
| Ambient temperature | -40±85℃ |
| IP rating | IP68 |
| Sealing method | Potting |
| Flame rating | 5VB |
| Connection type | Soldering |
| Pad count | 2 |
| Wire diameter range | 2.5mm2/14AWG, 4mm2/12AWG, 6mm2 |
| Cable length | Customized |
| Maximum operating voltage | 100V |

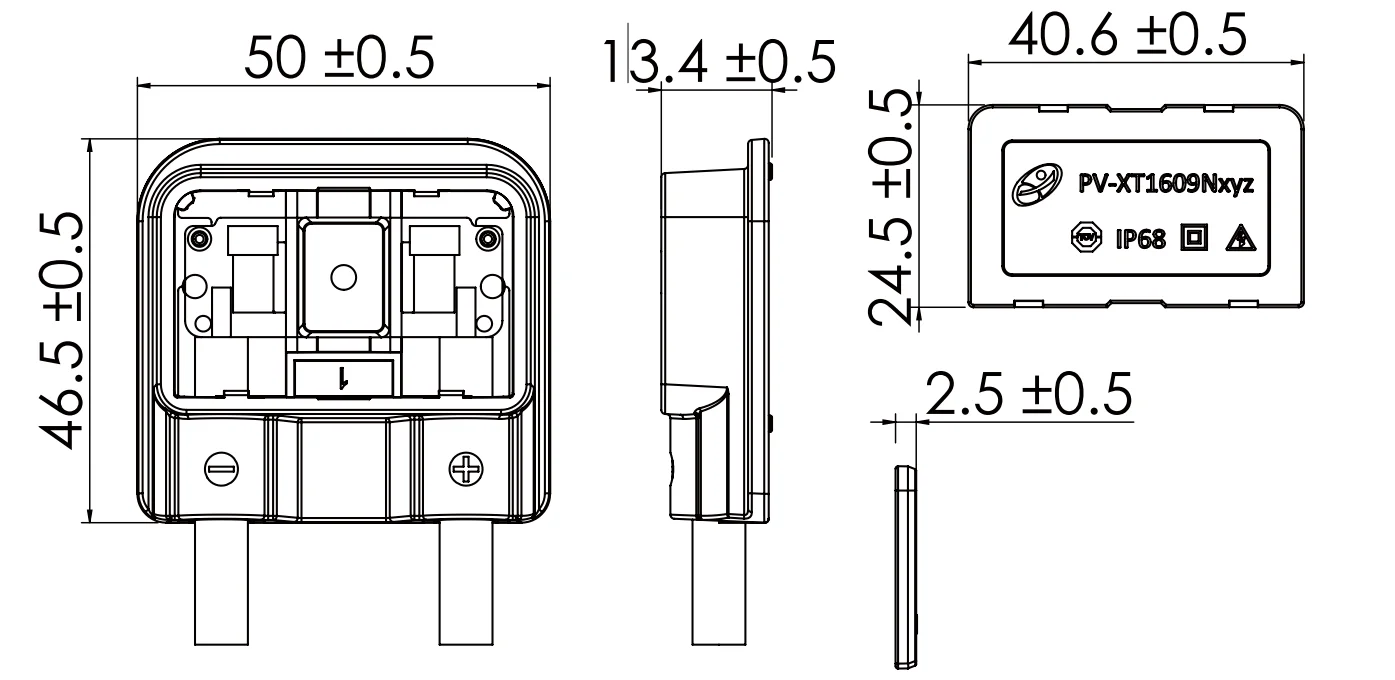

Overall dimension drawing
Certification
