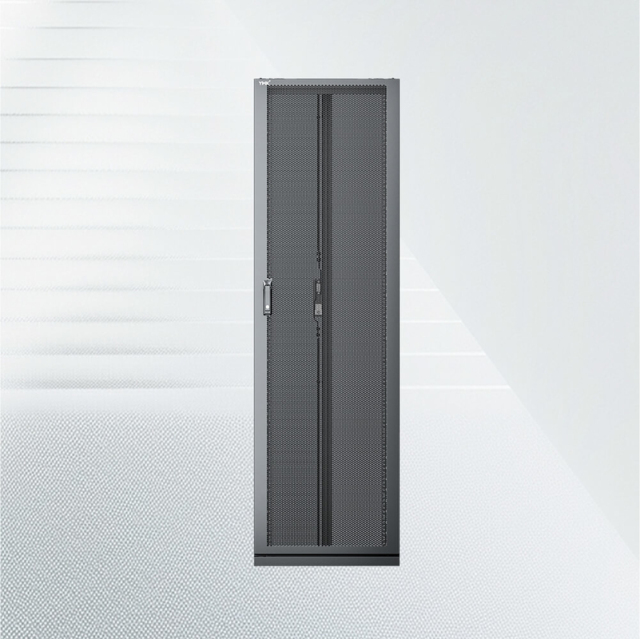

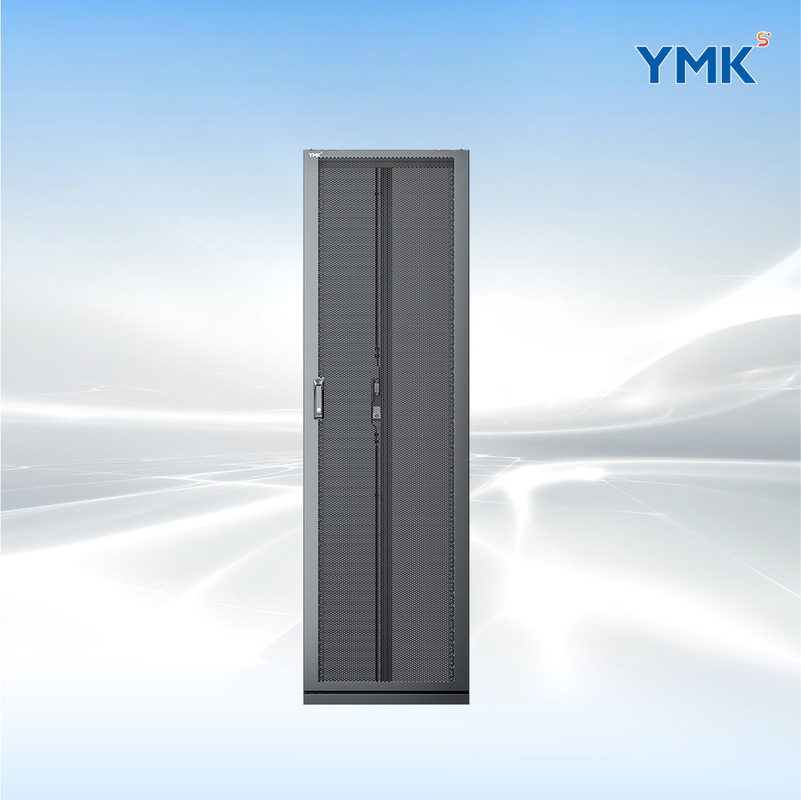

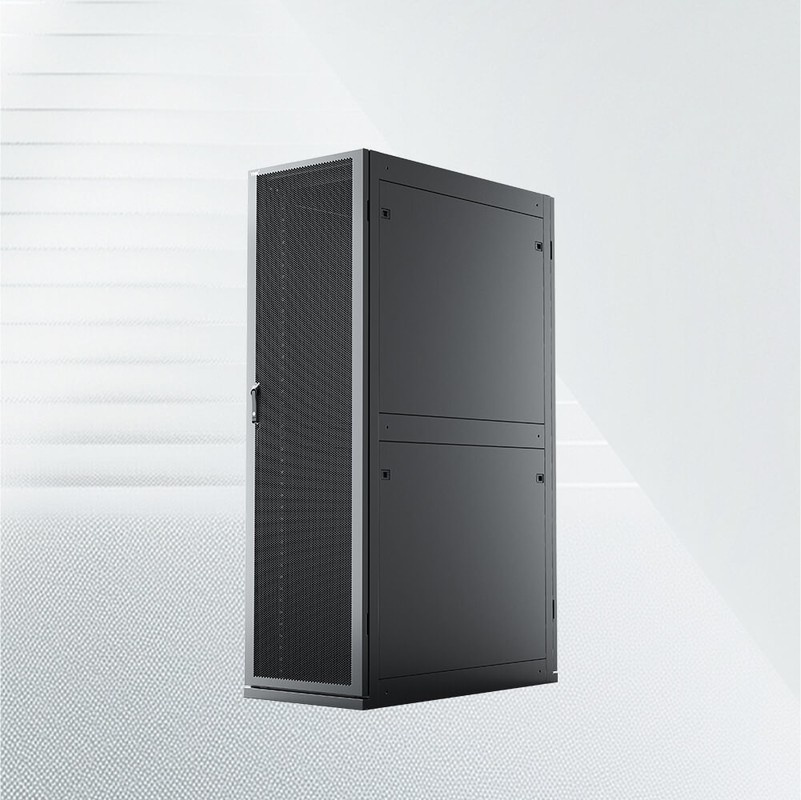

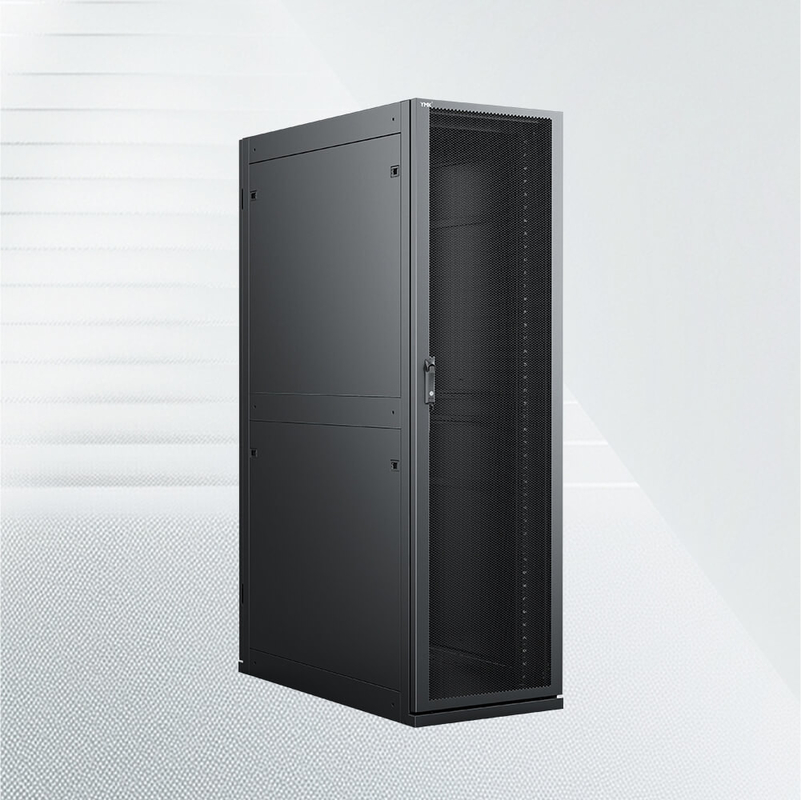

SRA Series Cabinet products are a medium- and high-end multi-functional cabinets developed by YMK for the server room of large, medium, and small data centers. They have the advantages of robust structure, strong load-bearing capacity, noble and elegant appearance, and complete functions. The cabinet has a modular welded structure and can be quickly assembled. The SRA Series Cabinet products can be used as a modular equipment installation infrastructure, and a box-style power distribution cabinet, and can also be equipped with rack-style equipment. It can integrate user equipment, rack-style power distribution, rack-style UPS, rack-style battery boxes, power and environmental monitoring, greatly saving the equipment's footprint in the server room.
The cabinet can be widely used in computer data and network systems, suitable for multiple industries such as banking, securities, transportation, communication, and education.
Core Value
High reliability for safe use
?High-quality cold-rolled steel plate, with main frame no less than 2.0 mm thick, the load bearing parts no less than 1.5 mm thick, front and rear door panels no less than 1.2 mm thick, other components no less than 1.0 mm thick, and a weight of 2,400 kg;
?A load bearing capacity of 600 kg, passing the seismic intensity test with 9 magnitudes, and meeting the requirements for building national A-level server rooms;
?Cabinet materials passed RoH tests, meeting RoHS environmental requirements;
?Optional cabinet installation base to reinforce cabinet fixation and enhance quake-proof performance;
?Protective grade: IP20;
Optimized design for quick installation on site
?The front and rear door adopts a flat door design, which is premium and beautiful overall, easy to move, and quick to assemble;
?Front and rear doors and left and right side doors can be quickly disassembled without tools, facilitating on-site construction;
?Dismantling-free doors facilitate quick cabinet joining, provided with a complete set of optional accessories;
?Casters are optional for simpler and easier movement and handling during transport;
High availability for widespread Application Scenarios
?A ventilation rate of the front and rear door greater than 75% meets the requirements of high-density, high heat dissipation scenarios;
?Firm, solid structure, with a large internal space;
?Multiple cable management channels are reserved at the top and bottom of the cabinet, and bottom wiring holes may be adjusted as needed;
?Satisfactory cabinet cable management solutions with the following options: Top entry and top exit cables, bottom entry and bottom exit cables, top entry and bottom exit cables, and bottom entry and top exit cables.
?Satisfactory cabinet cooling management solutions: Front intake air, top exhaust air and bottom exhaust air;
?Satisfactory cabinet power supply management solutions with the following options: optional modular distribution unit, rack-mounted PDU and vertical PDU.
Application Scenarios
?Server cabinets
?Network cabinets
?Control cabinets
?Cabinet equipment (air conditioner, UPS, distribution cabinet, etc.) body
